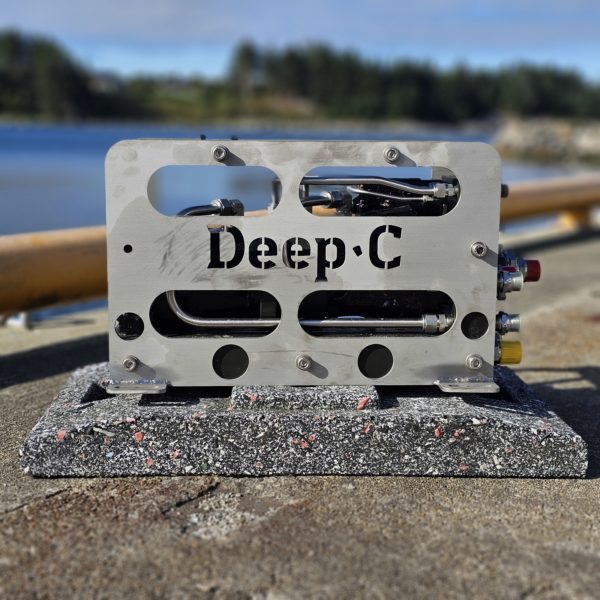

Deep C® Dirty Work Pack

  • Valve for remote Start/Stop
  • Flow regulation valve for speed control
  • Pressure relief valve
  • Mounted on skid
  • Unit rated to full ocean depth

Request more information

Category:

Download as pdf

Description

The Deep C® Dirty Work Pack (DWP) is a compact skid with ROV friendly design and well proven technology. All hydraulic connections are located on the same plate making the interface easy. The DWP is driven by the main hydraulic circuit via the separate DWP to avoid pollution in main hydraulic system.

Applications

  • ROV tooling
  • To avoid dirt in hydraulic system
  • To be used together with hot stab

Technical specifications

Dimensions (LxWxH): 590 mm x 250 mm x 350 mm
Weight in air 65 kg
Weight submerged 55 kg
Max supply pressure 210 Bar
Max supply flow 90 L/min
Max output flow @210 Bar 60 L/min
Efficiency Rated to 66 %

Transport dimensions:



Lenght 800 mm
Width 600 mm
Height 400 mm
Weight 150 kgs
