Description
The Deep C Merlin Zip Dredging and Jetting pump can be used for a various variety of applications. The pump consist of a robust and ROV friendly design. The pump size is small and built in material that keeps the weight low.

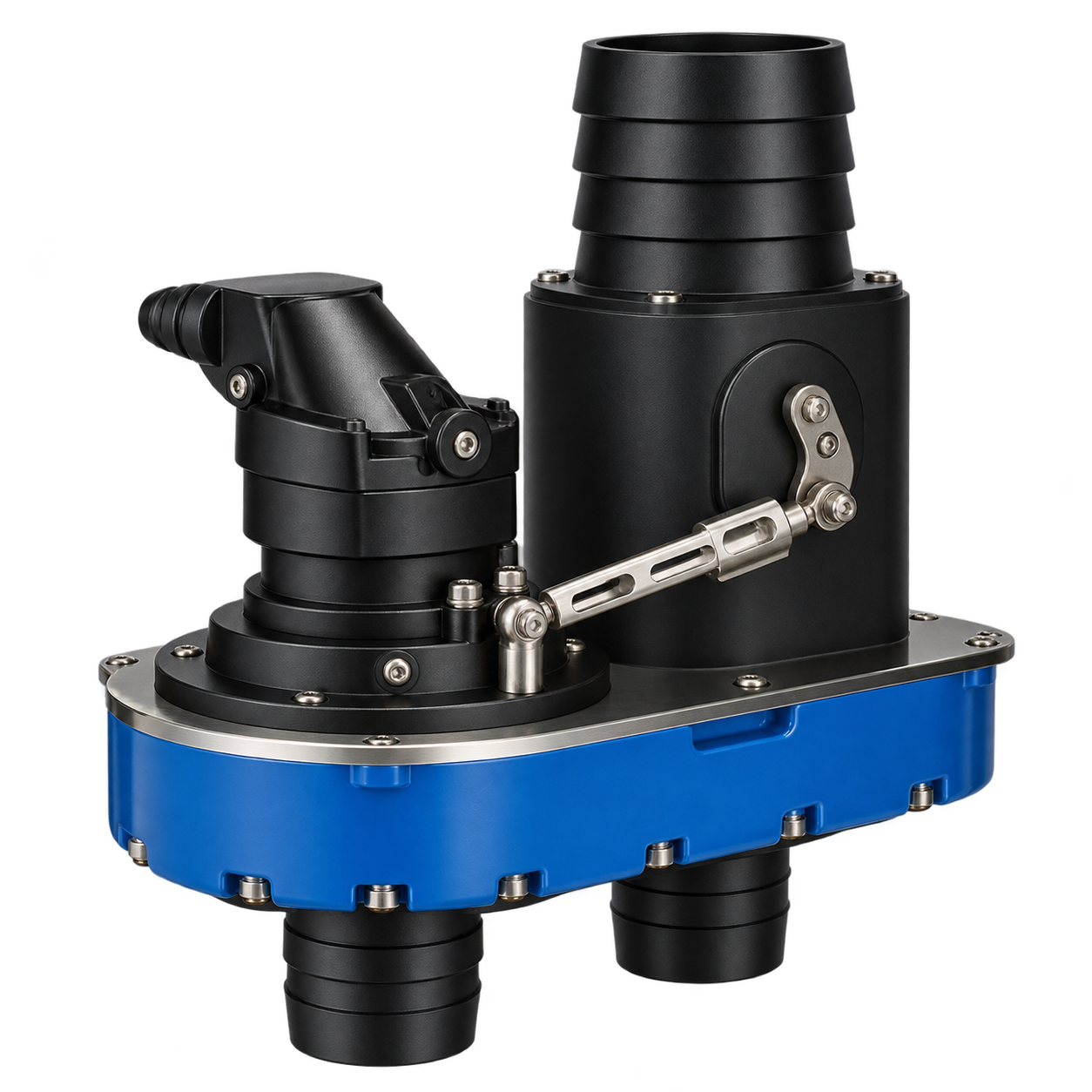

Deep C® Merlin Zip Pump
- Rapid switching from suction to jetting
- Robust proven design
- Reverse of flushing suction nozzle
Request more information
Applications
- Dredging seabed material
- Water jetting
- Removal of soft marine growth
- Clearing of subsea manifolds
Technical specifications
| Dimensions (LxWxH): | 499 mm x 257 mm x 298 mm |
| Weight in air | 40 kg |
| Weight submerged | 17 kg |
| Min/Max supply pressure motor | 170/250 Bar |
| Min/Max supply flow motor | 65/110 l/min |
| Min/Max supply Actuator | 120/240 Bar |
| Jetting performance | 600 l/min @ 8 Bar |
| Suction flow | 2000-4000 l/min |
| Solid removal rate | 10 < 40 ton per hour |
Transport Dimensions
| Length | 720 mm |
| Width | 680 mm |
| Height | 620 mm |
| Weight | 75 kgs |
