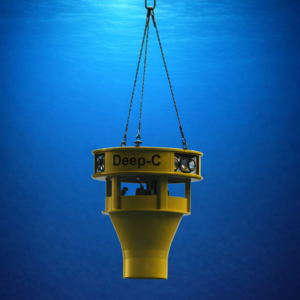

Deep C® Jumbo Dredge

  • High flow suction unrestricted diameter up to 32”
  • Onboard jetting systems for clay disintegration
  • Controlled disposal of sediments
  • Auto heading and heading control
  • Subsea quick connector for exhaust hoses
  • Remotely operated backflush function
  • Sonars and cameras for live monitoring
  • Crane or moon pool deployment
  • No need for ROV/ diver intervention

Request more information


Download as pdf


The Deep C Jumbo Dredge is a mass flow excavation tool, utilizing high volume suction flow. The Deep C Jumbo Dredge diversifies from conventional mass flow excavation by controlled suction and disposal of sediments. This method provides several advantages such as no fluidisation of seabed, controlled excavation, avoids trench backfilling, maintains good visilibility.

Technical specifications

Dimensions (LxWxH) 2700 mm x 2100 mm x 3000 mm
Weight (air)
Weight (water)
3500 kgs*
2700 kgs*
Power sources 190 kW electrical motors for thrusters
95 kW electrical motor available for water jetting
Dredging system Up to 30″ unrestricted flow
Standard power on dredge 190 kW electrical power
Remotely operated backflush
Subsea quick connector for exhaust hose when extensive transport distances is required
Clay cutting Seabed specific configurations
95 kW electrical power available with no need for additional topside equipment or downlines
Navigation Lights forward and aft
Cameras forward and aft
Sonars forward and aft
Deployment  Dedicated pedestal for deployment, landing and storage. Hangs freely in crane wire, no guide wires required. Heading is controlled by joystick or by auto heading

*) typical configuration

Topside Spread

PDU Container (LxWxH)
6000 mm x 2400 mm x 2700 mm
9000 kg
Umbilical Winch (LxWxH)
2400 mm x 3500 mm x 2500 mm
13000 kg
Umbilical Chute (LxWxH)
 2200 mm x 900 mm x 1800 mm
1000 kg

Several Deep C® Systems can be operated from one single topside spread, allowing you to bring a tool box offshore with minimum mobilization

Deep C® Systems consists of standardized and interchangeable components

Deep C® Systems are very flexible for project specific configurations and will be optimized to meet your actual requirements
