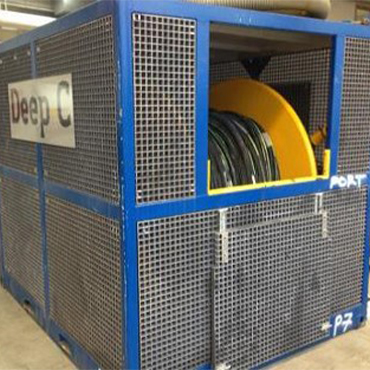

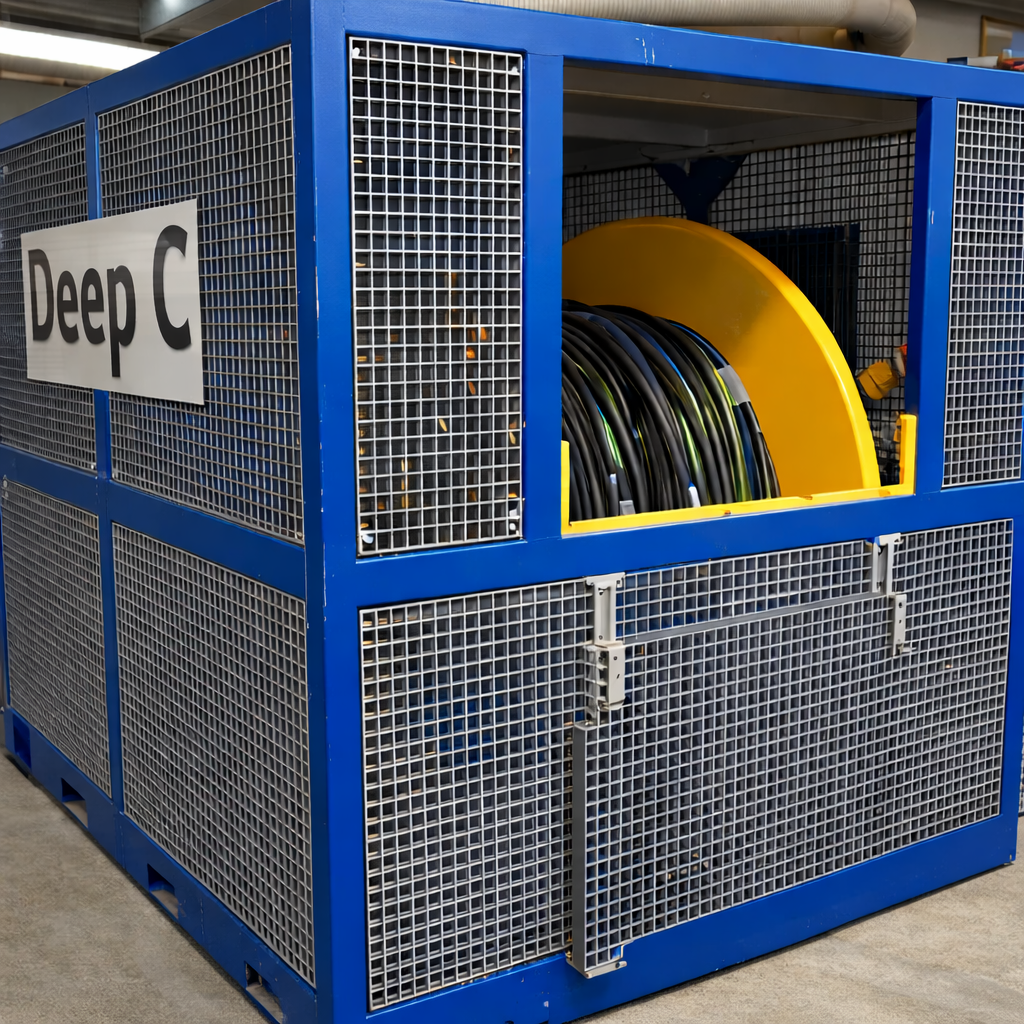

Deep C® 55 kW HPU Reel

Request more information

Category:

Download as pdf

Description

The Deep C® HPU Reel is an electrically powered hydraulic pump with hydraulic hoses assembled on a Reel. The HPU Reel is powered by a electric motor. It is also fitted with an automatic hydraulic brake, hydraulic swivel fitted in drum shaft opposite motor side. Quick release couplings at swivel and winch drive for connection of hoses from HPU Reel. Electrically activated manipulation valve for both local and remote operation of winch.

Dimensions



LxWxH 2991 mm x 2438 mm x 2671 mm
Weight in air 6000 kgs
Weight in water N/A
Power Supply 1 off: 400 V, 60 Hz, 63 amp, 3 phase
