Deep C® Topside HP Jetting Unit

  • ROV or Divers intervention compatible

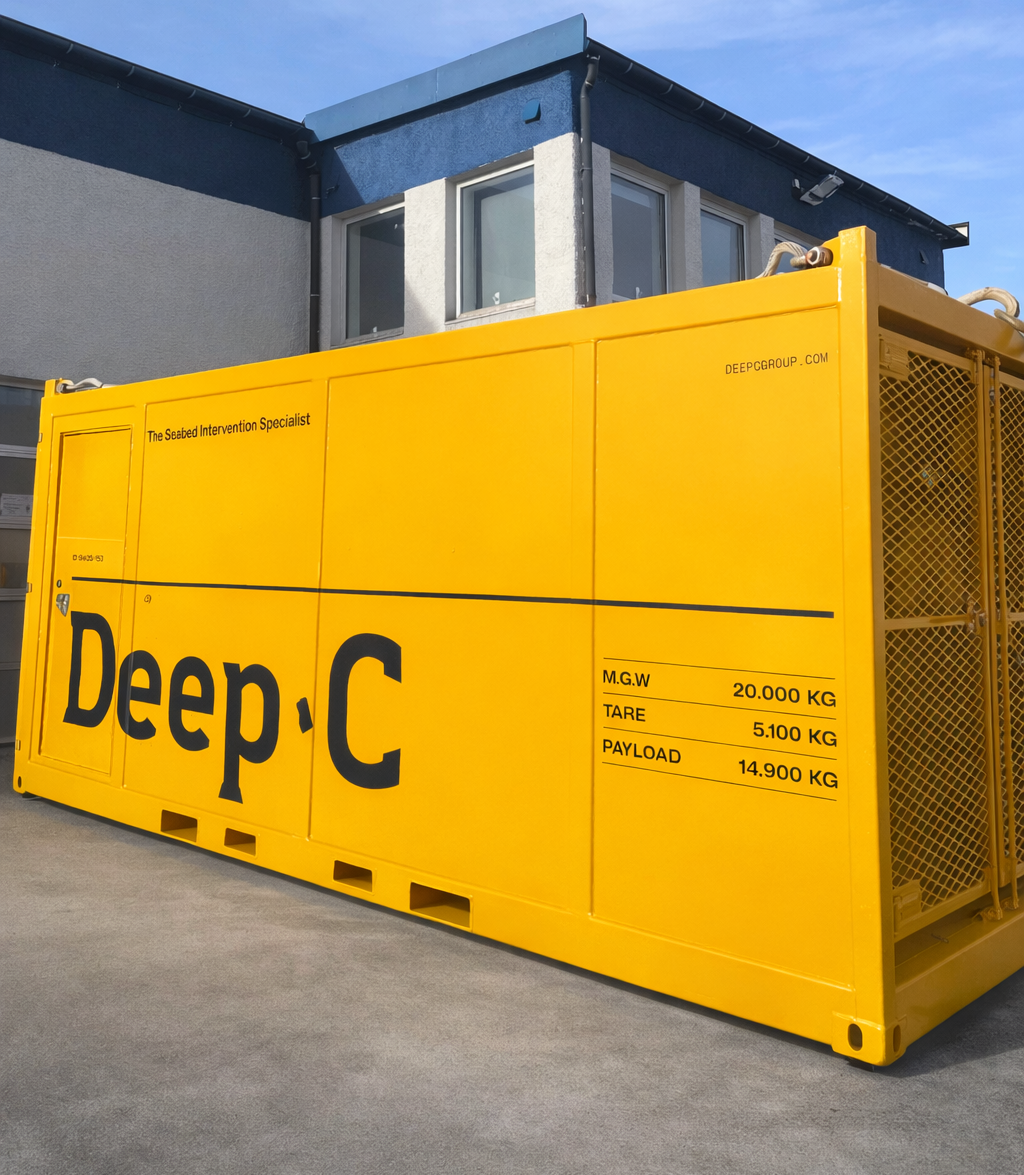

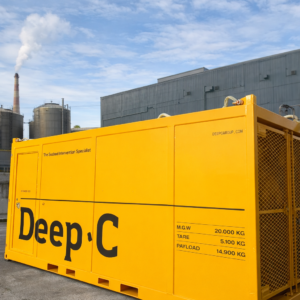

  • Containerized system
  • Easy to install and low maintenance
  • Topside and Subsea jetting compatible
  • Remote shutdown and Rigsafe certified

Request more information

Categories: ,

Download as pdf

Description

The Deep C® HP Jetting Unit is a Diesel driven pump for use on a wide range of jetting requirements. It is custom buildt in a certified container allowing for easy maintenance, contingency and ancillary storage along with preservation of the assets within. The pump can be configured to supply a wide range of pressures and flows to suit various jetting options.

Applications

  • Marine growth removal
  • Concrete and grout removal/cutting
  • Topside and Subsea
  • Decommissioning and IRM workscopes

Technical specifications

Type of system Diesel driven jetting pump @ 150 HP
Weight 6500 kg
Dimensions (LxWxH) 2990 mm x 2440 mm x 2590 mm
Pump type Hughes triplex pump
Max pressure 12000 psi / 900 Bar
Max water flow 64 lpm
Air start requirement Crowsfoot fitting / 175 cfm @ 100 psi / 4955 lpm @ 7 Bar
Water supply requirements 2″ fire hydrant
Diesel requirements 27 liters per hour @ full load
Container Lifting to BS 7072 construction
