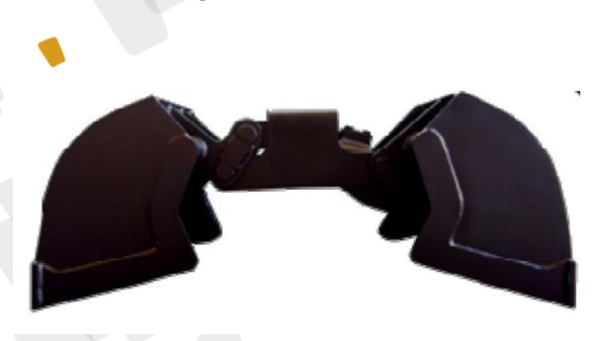

Deep C® Mini Grab

  • Volume 180 L
  • Lifting capacity 600 kg SWL
  • Hydraulically operated
  • Fully contained in closed position

Request more information

Category:

Download as pdf

Description

The Deep C® Mini Grab is a robust and versatile hydraulically operated grabber tool. The Deep C® Mini Grab is designed to be operated by Deep C® SUV or deployed by vessel crane. The hydraulic supply can either be provided from Deep® SUV, ROV or through topside supply.

Applications

  • Sediment removal
  • Relocation of debris
  • Sediment sampling
  • Grout removal

Technical specifications

Volume 180 Liters
SWL 600 kg
Dimensions Closed 830 mm ; Open 120 mm
Cylinders 2
Maximum flow 175 lpm
Pressure range 180-200 Bar

Transport Dimensions



Length 120 cm
Width 80 cm
Height 60 cm
Weight 160 kgs

Available Complementary Equipment

  • Topside HPU and reel
  • Hot stab system for ROV operations
  • ROV Dirty Work Pack
  • Chutes for over boarding of down lines.
  • Subsea recovery baskets
  • Bespoke solutions
